VDI-Mode: is a FAT-Client feature where the LoadGen Agent doesn’t have to be online when the LoadTest is started, i.e. because the server has to provision and start-up the machine (VDI).
LoadGen will start the test on this machine as soon as the Agent is responding.
What is Lazy-SUT (Systems under Test)?
Lazy-SUT (Systems Under Test) is to be used in combination with VDI-Mode. The LoadGen Agent doesn’t have to be online when the LoadTest is started, as soon as the Agent is responding the System Under Test Monitoring will start collecting the defined counters.
Implementing VDI-Mode and Lazy-SUT
Below is a guide on how to implement VDI-mode and Lazy-SUT in your local client profile.
Open Loadgen Director and open a FAT-Client profile.
Double click on the Canvas to open your Load Profile editor.
Click on the tab VDI Mode.
To activate VDI - Mode check the VDI-mode box:
Implementing Lazy-SUT with VDI-Mode
Make sure you have created a Systems under Test profile, you can find Systems under test in the ribbon Tools.
Create a Systems under test Template

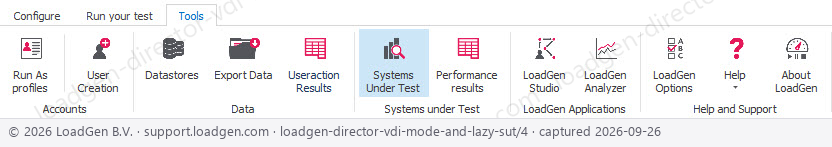

You can find Systems under test in the ribbon Tools:

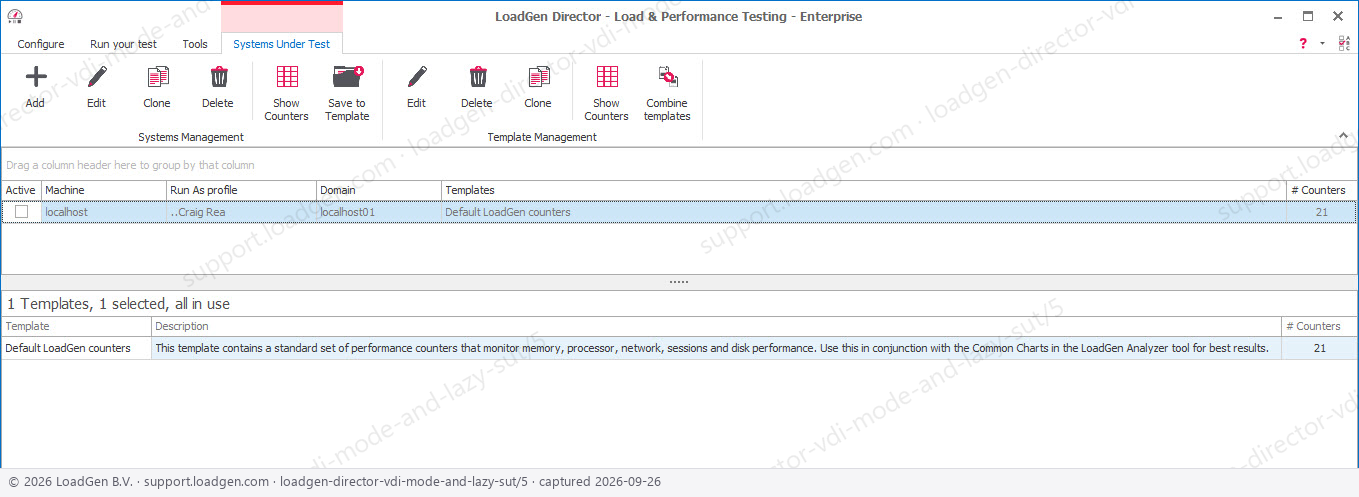

When opened you can add edit clone and delete System under test templates:

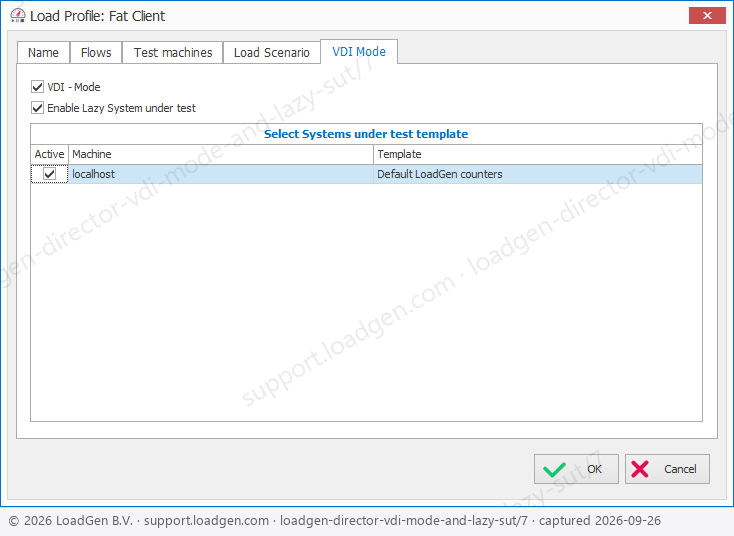

To enable Lazy System under test (you have to have VDI-Mode active) check the Enable lazy System under test box.
The table will now become active and you can select the Systems under test template you want to add to your Test.
