Collecting Nutanix Counters during a LoadGen Test

In this guide, we'll explain how to collect Nutanix performance counters during your LoadGen Load and Performance tests using the LoadGen-NutanixCollector tool. This tool gathers performance data from a Nutanix Prism (Central or Element) host and records it directly into your SQL Server database.

Understanding the Data Tables

In the architecture of LoadGen, there are three main types of messages that facilitate communication and data management:

• DUAF (Data User Action Framework): This category includes messages related to user actions within applications or transactions, such as start, stop, and fail events.
• PM (Performance Metrics): These messages contain performance data from the systems under test, including various performance counters.
• SMD (Session Messages Director): These messages have the highest priority and ensure the LoadGen Director receives critical session-related communications promptly. We will not use this data to analyze a test.

This structure allows LoadGen to efficiently manage and analyze the vast amounts of data generated during testing, ensuring high levels of performance and insight.

Each test run generates tables with a DateTime string appended to their names. For instance, DUAF202406141746438149 and PM202406141746438149 might be tables from one test run, and DUAF202406231746422999 and PM202406231746422999 might be from another.

Steps to set up the LoadGen-NutanixCollector tool

The LoadGen-NutanixCollector utilizes the Nutanix REST API (v3 and v4.1) to collect performance metrics, writing them efficiently to your SQL Server using SQLBulkCopy. The data is automatically stored in the latest Performance Metrics SQL Table associated with your current LoadGen test.

Step 1: Download the LoadGen-NutanixCollector Tool

 You can download the LoadGen-NutanixCollector tool here.

Step 2: Run the LoadGen-NutanixCollector Tool

The LoadGen-NutanixCollector offers different modes of operation. We advise first running in Encryption Mode to securely generate encrypted credentials. Be sure to store the encrypted string generated during this step, as you will use it in Step 3 when configuring the tool in Secure Mode for your actual data collection.

Plain Text Mode

Use this mode if you're comfortable passing credentials directly via the command line:

• -silent
  Executes the tool without any interactive prompts or output on screen, suitable for automation scripts and background tasks.
• -nutanixPrism
  Specifies the hostname or IP address of the Nutanix Prism Central or Prism Element server from which performance metrics will be collected.
• -nutanixCluster
  Specifies the Nutanix cluster name or node name to monitor.
• -nutanixUser
  The username for authentication on the Nutanix Prism host.
• -nutanixPassword
  Password for the provided Nutanix user account.
• -sqlserver
  Defines the SQL Server hostname or IP address where collected performance metrics will be stored. A period . can be used to specify localhost.
• -sqldatabase
  Specifies the target SQL Server database for storing performance data.
• -sqltrusted
  Indicates whether a trusted (Windows-integrated) connection should be used (yes or no).
• -sqluser
  The SQL Server username if using SQL authentication (-sqltrusted no).
• -sqlpassword
  Password for the provided SQL Server user account.
• -nutanixcounters
  A comma-separated list of specific Nutanix performance counters you want to retrieve (e.g., hypervisor_cpu_usage_ppm,hypervisor_memory_usage_ppm). Use the -getnutanixcounters mode to identify available counters.
• -interval
  Defines the interval (in seconds) between each collection of performance metrics. Minimum is 5 seconds. A shorter interval increases granularity and data volume.
• -timeout
  The data collection session's total duration (in seconds) before the tool stops automatically.
• -stopFile
  Path to a file whose creation acts as a signal for the tool to stop data collection. Useful for manual or automated termination of data collection.
• -encrypt
  Runs the tool in interactive mode to securely input credentials, generating an encrypted credential string to be used later in a secure mode.
• -secure
  Used in secure mode to provide a previously generated encrypted credentials string, enhancing security by avoiding plain-text credentials on the command line.
• -getnutanixcounters
  Lists available Nutanix counters from the specified Prism host. Use this mode to identify performance counters that are available for collection.
• -M
  Enable MultiSubnetFailover for SQL connections.
• -apiversion
  Specify the Nutanix API version to use. Supported values are v3 and v4.1. Defaults to v4.1. Use v3 for legacy Nutanix environments.
• -IgnoreSSL
  Ignore SSL certificate validation. Use this flag when connecting to Nutanix Prism hosts that use self-signed certificates.

Step 3: Preparing Your Load Scenario in LoadGen Director

To automate performance data collection during test execution:

1. Open the LoadGen Director.
2. Open your canvas / Load Profile.

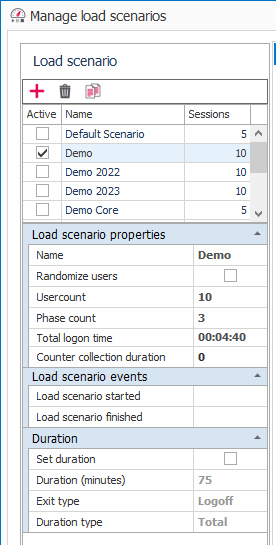

3. Double-click the active Load Scenario you want to modify.
4. Select Load scenario events, then click Scenario Start.

5. Click ... to create a new custom action.

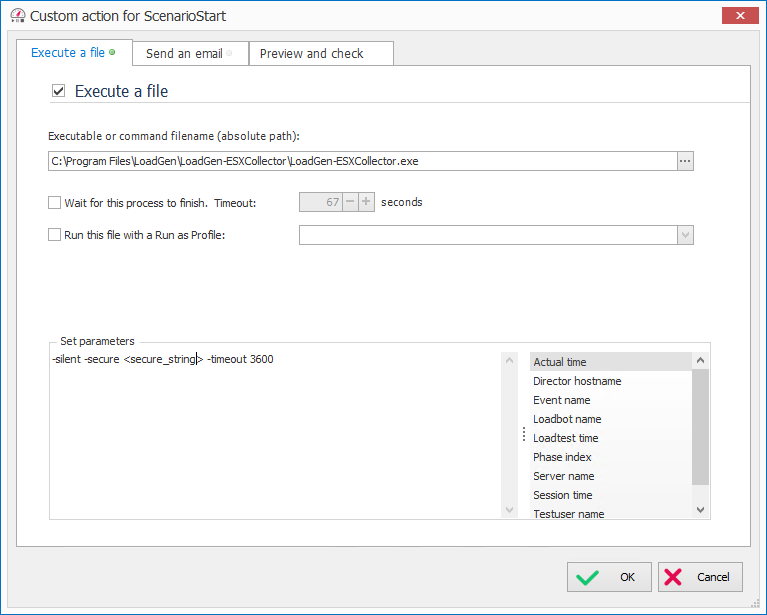

6. Choose Execute a file, and specify the path to LoadGen-NutanixCollector:

   C:\Program Files\LoadGen\LoadGen-NutanixCollector\LoadGen-NutanixCollector.exe

7. Set parameters using secure mode (recommended):

   -silent -secure <secure_string> -timeout 3600 -IgnoreSSL
   Replace <secure_string> with your encrypted credentials string from Encryption Mode. The -IgnoreSSL flag is optional and only needed when connecting to Nutanix Prism hosts with self-signed certificates.

Step 4: Visualizing Nutanix Performance Metrics in LoadGen Analyzer

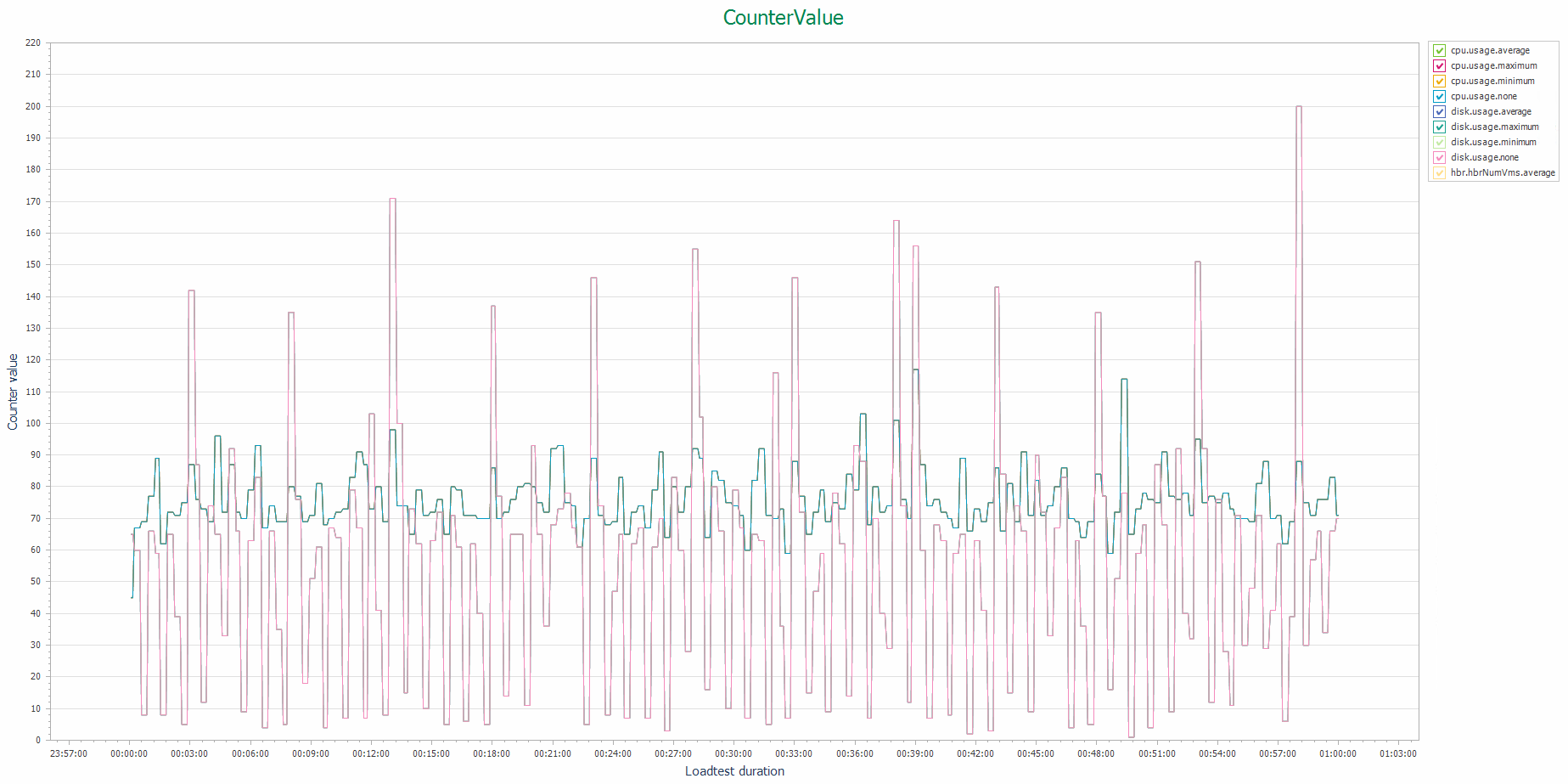

The LoadGen Analyzer offers a powerful way to analyze performance data collected from Nutanix hosts during your load and performance tests. Once you've collected Nutanix counters using the LoadGen-NutanixCollector, you can build detailed and interactive charts to gain insight into host performance over the duration of your test.

1. Launch LoadGen Analyzer from your system.
2. Select the correct Data Source.
   1. Make sure you are connected to the database that contains the Performance Metrics (PM) tables. These tables should have been automatically populated by the LoadGen-NutanixCollector tool during your test.
3. Create a Custom Chart
4. In the left-side Chart Elements panel:
   1. Expand Custom charts > Data > Loadtest duration
   2. Drag Loadtest duration onto the X-axis of your chart (this represents the timeline of your test).

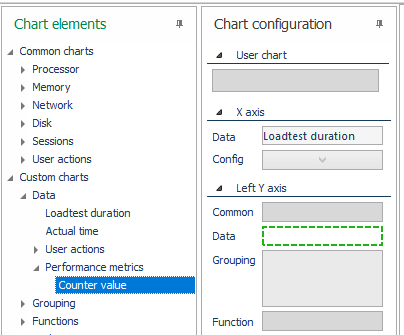

5. Add Performance Metric Values to the Y-axis
   1. Navigate to Custom charts > Data > Performance metrics > Counter value
   2. Drag and drop Counter value onto the Left Y-axis

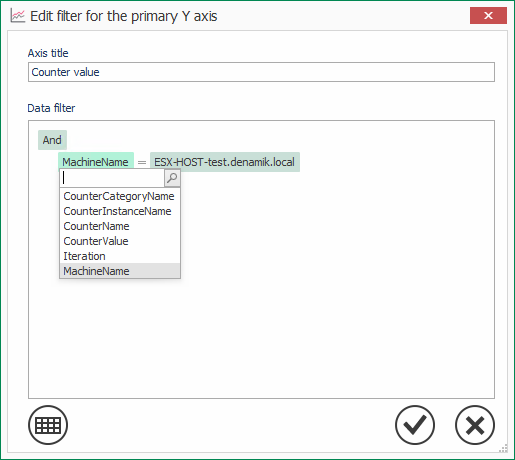

6. Filter for Your Nutanix Cluster, to focus on the performance data from your specific Nutanix cluster:
   1. Click the filter icon next to the Left Y axis
   2. In the popup filter editor, choose MachineName
   3. Set the condition to match your Nutanix cluster
   4. Press OK to apply the filter

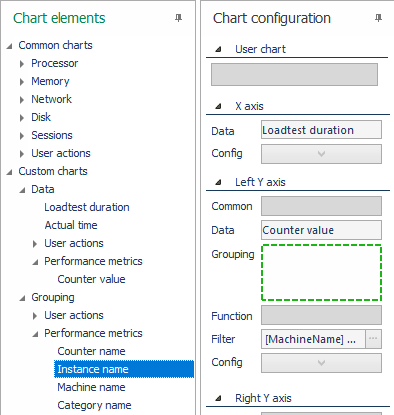

7. Group Metrics for clarity, to display multiple series (such as average, maximum, and minimum values) clearly on the same chart:
   1. Navigate to Grouping > Performance metrics > Instance name
   2. Drag the Instance name into the Grouping box
   3. This ensures different counter types (e.g., hypervisor_cpu_usage_ppm, hypervisor_memory_usage_ppm) are visualized as separate lines in your graph

8. (Optional) Customize Functions
   1. In the Function dropdown, you can choose how to aggregate the values (e.g., Average, Minimum, Maximum). This allows for high-level trend analysis or precise point monitoring

Recommended Practices

Using the LoadGen-NutanixCollector allows seamless integration of comprehensive Nutanix performance insights into your LoadGen testing process, aiding precise and reliable performance analysis.

• You can always use Secure or Encryption modes to protect sensitive credentials.
• Define a suitable timeout to manage data volume.
• Select only the necessary counters to optimize data relevance.
• Use the -IgnoreSSL flag when connecting to Nutanix Prism hosts with self-signed certificates.
• The default API version is v4.1. Use -apiversion v3 only for legacy Nutanix environments.

MultiSubnetFailover Feature

What is MultiSubnetFailover?

MultiSubnetFailover is a SQL Server connection feature that enables faster failover in multi-subnet environments. When enabled, the SQL client attempts to connect to multiple IP addresses simultaneously, reducing connection time in clustered or Always On availability group scenarios.

When to Use MultiSubnetFailover

• SQL Server Always On Availability Groups across multiple subnets
• Failover Cluster Instances spanning different subnets
• Geographically distributed SQL Server deployments
• Network environments with multiple network paths

How to Enable

Add the `-M` flag to any command line:

LoadGen-NutanixCollector.exe -silent -nutanixPrism <prism host> -nutanixCluster <cluster name> -nutanixUser <user> -nutanixPassword <password> -sqlserver <server> -sqldatabase <database> -sqltrusted <yes/no> -sqluser <sqlUser> -sqlpassword <sqlPassword> -nutanixcounters <counters comma-separated> -interval <intervalInSeconds> -timeout <timeoutInSeconds> -stopFile <stopFilePath> -M

Secure Mode

This mode decrypts previously encrypted credentials at runtime:
